Фігури¶

Фігури зручні, якщо ви хочете додати індивідуальності своєму вебсайту.

У цьому розділі ви дізнаєтесь, як додавати стандартні та власні форми фону й зображень.

Фігури фону¶

Фігури фону – це SVG-файли, які можна додавати як декоративний фон у різні розділи. Кожна фігура має один або кілька налаштовуваних кольорів, а деякі з них анімовані.

Попередження

Фігури Odoo за замовчуванням використовують карту палітри кольорів Odoo за замовчуванням як орієнтир. Таким чином, кольори будуть автоматично адаптуватися до нової палітри щоразу, коли вона змінюється:

default_palette = {
    '1': '#3AADAA',
    '2': '#7C6576',
    '3': '#F6F6F6',
    '4': '#FFFFFF',
    '5': '#383E45',
}

Standard¶

Доступний великий вибір стандартних фігур фону.

Використання

<section data-oe-shape-data="{'shape':'web_editor/Zigs/06'}">
    <div class="o_we_shape o_web_editor_Zigs_06"/>
    <div class="container">
        <!-- Content -->
     </div>
</section>

data-oe-shape-data is a JSON object containing information about your shape like the location of the SVG file, the repeat and flip options, etc.

For example, you can flip the shape horizontally or vertically by using the X or Y axis like this:

<section data-oe-shape-data="{'shape':'web_editor/Zigs/06','flip':[x,y]}">
    <div class="o_we_shape o_we_flip_x o_we_flip_y o_web_editor_Zigs_06"/>
    <div class="container">
        <!-- Content -->
    </div>
</section>

Colors mapping¶

You can also change the default colors mapping of your shape either by switching colors in the current map or by creating a alternate map without modifying the initial one.

Switch colors mapping¶

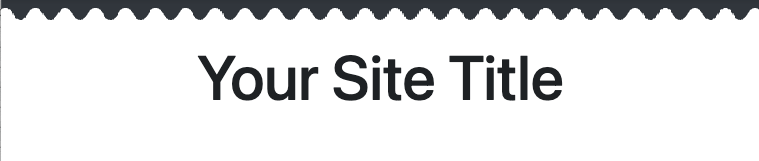

First, we can use a shape like this:

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" preserveAspectRatio="none" width="100%" height="100%">
    <defs>
        <svg id="zigs06_top" viewBox="0 0 30 30" preserveAspectRatio="xMinYMin meet" fill="#383E45" width="100%">
            <path d="M30,7.9C22.5,7.9,22.5,20,15,20S7.5,7.9,0,7.9V0h30V7.9z"/>
        </svg>
        <svg id="zigs06_bottom" viewBox="0 0 30 30" preserveAspectRatio="xMinYMax meet" fill="#FFFFFF" width="100%">
            <path d="M0,22.1C7.5,22.1,7.5,10,15,10s7.5,12.1,15,12.1V30H0V22.1z"/>
        </svg>
    </defs>
    <svg>
        <use xlink:href="#zigs06_top"/>
        <use xlink:href="#zigs06_bottom"/>
    </svg>
</svg>

Here, we use #383E45 and #FFFFFF which corresponds to the 5th and 4th colors in the Odoo’s default color palette.

The shape is declared as follows in SCSS:

/website_airproof/static/src/scss/primary_variables.scss¶

'Zigs/06': ('position': bottom, 'size': 30px 100%, 'colors': (4, 5), 'repeat-x': true),

The blackish color is used at the top (c5), the lightish (c4) at the bottom and in between, the shape is simply transparent.

We are going to rewrite the colors map with some key: value couples:

With color palette reference and custom color

/website_airproof/static/src/scss/primary_variables.scss¶

 $o-bg-shapes: change-shape-colors-mapping('web_editor', 'Zigs/06', (4: 3, 5: rgb(187, 27, 152)))

Or just with references

/website_airproof/static/src/scss/primary_variables.scss¶

 $o-bg-shapes: change-shape-colors-mapping('web_editor', 'Zigs/06', (4: 3, 5: 1));

The c4 (white) will be replaced by c3 (whitish) and c5 (black) by c1 (white).

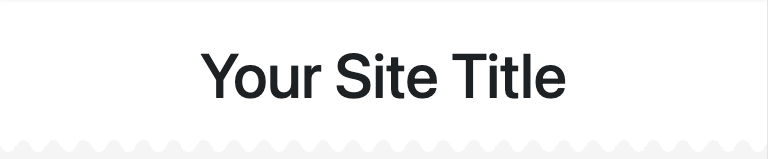

Results

Add extra colors mapping¶

Adding extra color mapping allows you to add a color variant to the template of a shape while keeping the original.

/website_airproof/static/src/scss/boostrap_overridden.scss¶

$o-bg-shapes: add-extra-shape-colors-mapping('web_editor', 'Zigs/06', 'second', (4: 3, 5: 1));

<section data-oe-shape-data="{'shape':'web_editor/Zigs/06'}">
    <div class="o_we_shape o_web_editor_Zigs_06 o_second_extra_shape_mapping"/>
    <div class="container">
        <!-- Content -->
    </div>
</section>

Користувацький¶

Sometimes, your design might require creating one or several custom shapes.

Firstly, you need to create an SVG file for your shape.

/website_airproof/static/shapes/hexagons/01.svg¶

<svg version="1.1" xmlns="http://www.w3.org/2000/svg" width="86" height="100">
    <polygon points="0 25, 43 0, 86 25, 86 75, 43 100, 0 75" style="fill: #3AADAA;"/>
</svg>

Make sure to use colors from the default Odoo palette for your shape (as explained above).

default_palette = {
    '1': '#3AADAA',
    '2': '#7C6576',
    '3': '#F6F6F6',
    '4': '#FFFFFF',
    '5': '#383E45',
}

Attachment¶

Declare your shape file.

/website_airproof/data/shapes.xml¶

<record id="shape_hexagon_01" model="ir.attachment">
    <field name="name">01.svg</field>
    <field name="datas" type="base64" file="website_airproof/static/shapes/hexagons/01.svg"/>
    <field name="url">/web_editor/shape/illustration/hexagons/01.svg</field>
    <field name="public" eval="True"/>
</record>

Поле	Опис
name	Name of the shape
datas	Path to the shape
url	The location of your shape in the web editor. The file is automatically duplicated in `/web_editor/shape/illustration` by the Website Builder.
public	Makes the shape available for later editing.

SCSS¶

Define the styles of your shape.

/website_airproof/static/src/scss/primary_variables.scss¶

$o-bg-shapes: map-merge($o-bg-shapes,
    (
        'illustration': map-merge(
            map-get($o-bg-shapes, 'illustration') or (),
            (
                'hexagons/01': ('position': center center, 'size': auto 100%, 'colors': (1), 'repeat-x': true, 'repeat-y': true),
            ),
        ),
    )
);

Key	Опис
File location	`hexagons/01` corresponds to the location of your file in the `shapes` folder.
position	Defines the position of your shape.
size	Defines the size of your shape.
colors	Defines the color c* you want it to have (this will override the color you specified in your SVG).
repeat-x	Defines if the shape is repeated horizontally. This key is optional and only needs to be defined if set to `true`.
repeat-y	Defines if the shape is repeated vertically. This key is optional and only needs to be defined if set to `true`.

Add the option¶

Lastly, add your shape to the list of shapes available on the Website Builder.

/website_airproof/views/snippets/options.xml¶

<template id="snippet_options_background_options" inherit_id="website.snippet_options_background_options" name="Airproof - Shapes">
   <xpath expr="//*[hasclass('o_we_bg_shape_menu')]/header[hasclass('o_pager_nav')]//*[hasclass('o_pager_nav_btn')][last()]" position="after">
      <button type="button" class="o_pager_nav_btn p-0 text-uppercase" data-scroll-to="x_wd_scroll_bgshapes_aiproof">
         <span class="w-100">Airproof</span>
      </button>
   </xpath>
   <xpath expr="//*[hasclass('o_we_bg_shape_menu')]/div[hasclass('o_pager_container')]" position="inside">
      <div class="x_scroll_bgshapes_klingspor">
         <we-title>Airproof</we-title>
         <we-select-page string="Airproof">
            <we-button data-shape="illustration/airproof/01" data-select-label="Airproof 01"/>
         </we-select-page>
      </div>
   </xpath>
</template>

Use it into your pages¶

In your XML pages, you can use your shape in the same way as the others.

<section class="..." data-oe-shape-data="{'shape': 'illustration/airproof/01', 'colors': 'c4': '#8595A2', 'c5': 'rgba(0, 255, 0)'}">
    <div class="o_we_shape o_illustration_airproof_01"/>
    <div class="container">
        <!-- Content -->
    </div>
</section>

You can also redefine colors using the data-oe-shape-data attribute, but this is optional.
